—Commercial & Industrial Battery Storage Systems—

ULTIBLOCK-TL261

C&I Energy Storage

• High Safety Protection

  3-level fire protection design: at pack,cluster, and system levels

  stage explosion-proof design: at pack and cabinet levels

• High Integration

  Higher energy density: 261 kWh in only1.35 m2 footprint

  Fully integrated ESS in 1 cabinet:Battery + PCS + EMS + BMS + Thermal Management + Fire Protection

• Off-Grid Scalability

  Up to 9 units paralleled in off-grid mode

  Supports up to 1.125 MW off-grid output

• Product Advantage

  314Ah Cell

  Liquid Cooling

  3-Level Fire Protection

  7/24 Tech Supports

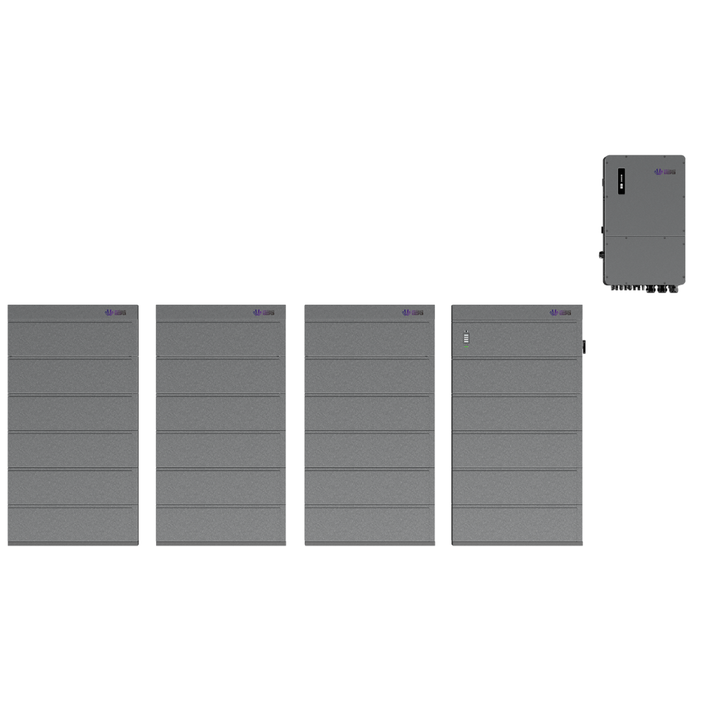

30-60KW Hybrid Energy Storage System

C&I Energy Storage

• High-Efficiency PV Input & MPPT

  4 MPPT trackers

  PV-to-inverter capacity ratio of 2:1

  Maximum PV input capacity: 100 kWp

• High-Capacity Energy Storage

  2 battery input channels

  Max storage capacity: up to 460 kWh

  Integrated design with higher ROI

• Strong Environmental Adaptability

  IP65 with Built-in heating film

  Operating temperature: -25 ~ +60℃

• Flexible Scalability & Customization

  Up to 8 units paralleled

  Multiple communication protocols: Modbus-RTU, Modbus-TCP, API, MQTT,EEBUS, etc.

  Highly customizable: integrated design,number/layout of input channels, battery cell capacity, etc.

• Product Advantage

  IP65

  Max 460 kWh

  Built-in Heating Film

  Modbus/MQTT/EEBUS
